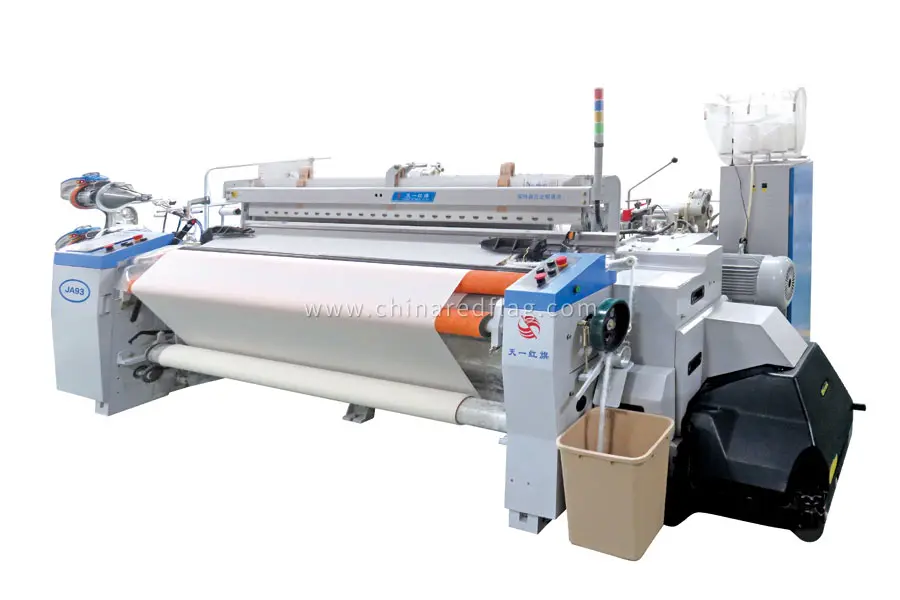

JA93-190-360 Air jet loom

Release time:2021-01-04 15:05:10

New rack connections increased rigidity,reducing rack deformation during operation,and enhance the stability of the whole operation is more suitable for high-speed heavy.

Details

JA93 series Air Jet Loom is new generation of Qingdao Tianyi Red Flag,the company is well-developed after years of efforts made,its performance can be the first of today's international loom comparable.More reasonable frame and warp tensin control system enables high-speed heavy woven fabric more stable weft insertion system more energy efficient.JA93 series jet loom will be its superior performance to lead the Chinese manufacturing industry looms.

1、New super-stable rack
New rack connections increased rigidity,reducing rack deformation during operation,and enhance the stability of the whole operation is more suitable for high-speed heavy.

New super-stable rack

2、More support balanced beating
Sley with a power balance arm structure,increasing the beating force is reduced while the maximum level of vibration generated by beating,is to improve the performance of the important part of high speed weaving.

More support balanced beating

3、Overlapping Taub board structure
Changes need to be changed in the weaving varieties width,the structure can be easily adjusted on the right side brace,brace avoid truncation or replace cloth.

Overlapping Taub board structure

4、New rear spar strucrure
Achieve External easing drive,to facilitate the adjustment and maintenance;about through the tension sensing axis warp tension accurately transmitted to the tension control system;shortened tension Liang length,to prevent weaving heavy fabrics caused by bending of the width direction of the warp tension difference.

New rear spar strucrure

Sample display of air jet looms

Sample display of air jet looms


Item

Specification

Optional


Reed space

Nominal

170.190.210.230.250.260.280.300.310.320.340.360.390cm


Useful reed width

Same as nominal width maximum
reduction 60cm(190-250crn)
Same as nominal width maximum reduction 80cm(280cm)


Working range


Short yam:100S/1 ~5.8S/1


Weft seledion


2-color mixing, 2-color at-will. 4colors. 6colors



Drive


Rush start motor


Programmed and direet drive &stop mechanism by electromagnet brake




Direct drive motor (directly drive the loom, reduce the energy loss of belt drive, and reduce the weaving cost)


Weft Insertion


Main and sub-noules combined system

Stretching nozzle

Profile reed


Auxiliary main nozzle

Double swing main jet
Double fixed main spray

Shedding


Positive cam shedding: shaft number up to 10


Dobby shedding: shaft number up to 16


let-off



Electronic let-off(el-o)with kickback funcbon


Positive easing


Flange Dia

800mm

914 、1000mm



Take-up


MTU:mechanical take-up

ETU electronic take-up

Max take-up Dia

600cm


Pick density

MTU:6.6 ~80.5 pickes/cm


(16.7 ~204.4pickes/inch)


Length count

board display,take the function of fixed measure stop


Temple

floor-mounted



Beating


Crank type beating,multiple sley sword beating
4 links(Reed space 190 ~280cm)
6links(Reed space280 ~360cm)
Intermediate rocking supporter


Measuring/storing


FDP Free drum pooling


Filling supply stand


Floor-mounted for 4 parckages(2colors),Floor-mounted for 8 parckages(4colors)


Selvedge


Planetary gear motion(lenoselvedge of middle cord yam)

Electronic edge

Waste filling removal


Catch cord type


Cutter


Mechanical cutter

Electronic scissors

Lubrication


Oil bath system for main drive parts,centralized lubrication(manual grease)



Auto-stop motion

Weft yam

Reflective weft feeler


Warp yam

Electric feeling system


other

Stop motion for selvage and catch cord yam


Stop cause indication

Message on board,
4-color lamp for indicating cause


Middle scissors


Mechanical type(Tisser double width)
